Description

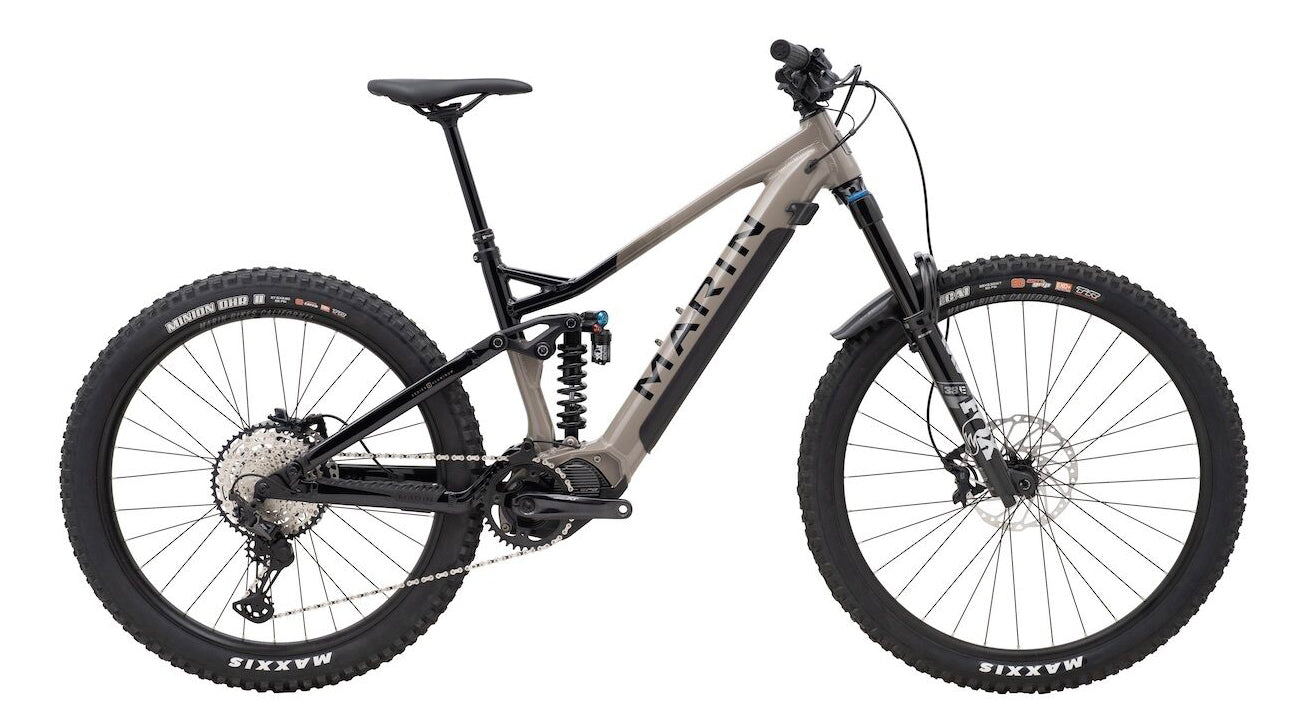

marin e bike fully Marin Alpine Trail E2Marin Alpine Trail E2 E bike : MAXIMIZING FUN The Marin Alpine Trail E1 will take you further, faster, allowing you to tackle the most aggressive trails either up or down. The Marin Alpine Trail E2 is Marin 's top end Alpine Trail, ready to tame the roughest and toughest of trails. For the best of the bunch, it is packed in the big dog Shimano STEPs EP801 system and a long lasting 630Wh battery, Fox 38 Float DHX2 Performance Elite suspension and a
Marin Alpine Trail E2 E-bike : MAXIMIZING FUN
The Marin Alpine Trail E1 will take you further, faster, allowing you to tackle the most aggressive trails either up or down.
The Marin Alpine Trail E2 is Marin 's top-end Alpine Trail, ready to tame the roughest and toughest of trails. For the best of the bunch, it is packed in the big-dog Shimano STEPs EP801 system and a long-lasting 630Wh battery, Fox 38/Float DHX2 Performance Elite suspension and a blend of Shimano XT and SLX 12-speed, including powerful 4-piston brakes.
The Marin Alpine Trail E models are built upon Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.
|
Product |
Marin Alpine Trail E2 E-Bike |
|
Model Year |
2024 |
|
Riding Type |
Enduro / All-Mountain |
|
Rider |
Unisex |
|
Sizes and Geometry |
SM
MD
LG
XL View Geometry |
|
Wheel Size |
29" 27.5+ Other: Mullet |
|
E-Bike Class |
Class 1: Pedal Assist (Pedelecs) |
|
Motor |
Shimano STEPS EP801, 85 Nm max torque, 250 W |
|
Battery |
Shimano STEPS EN806, integrated |
|
Battery Capacity |
630 Wh |
|
Display/Remote |
Shimano STEPS E600 display; E7000 remote |
|
Modes |
Boost, Trail, Eco, Walk Assist |
|
Max Speed with Assist |
Europe: 15.5 mph (25 km/h) Non-Europe: 20 mph (32.2 km/h) |
|
Frame Material |
Aluminum |
|
Frame Material Details |
Series 4 alloy, molded down tube and chainstay protection |
|
Rear Travel |
150mm |
|
Rear Shock |
FOX DHX2 Performance Elite, low-speed compression adjust, rebound adjust, trunnion mount, 205mm length x 65mm stroke Spring rates: 350lbs (SM/MD), 450lbs (LG/XL) |
|
Fork |
FOX FLOAT 38 Performance Elite, 44mm offset, Kabolt thru-axle, integrated FOX fender/mudguard |
|
Fork Travel |
160mm |
|
Head Tube Diameter |
Tapered, 1.125" top, 1.5" bottom |
|
Headset |
FSA No.57, sealed cartridge bearings |
|
Handlebar |
Marin Trail, 7000 alloy, 800mm width, 20mm rise, 5° upsweep, 8° backsweep, 35mm clamp diameter |
|
Stem |
Marin, CNC alloy, 35mm length, 35mm bar clamp |
|
Grips |
Marin Grizzly, lock-on |
|
Brakes |
Shimano SLX M7120, 4-piston, 203mm CENTER LOCK rotors with rear speed sensor magnet |
|
Brake Levers |
Shimano SLX M7100, I-SPEC EV clamps |
|
Drivetrain |
1x |
|
Shifters |
Shimano SLX M7100, 12-speed, I-SPEC EV bracket |
|
Front Derailleur |
None |
|
Rear Derailleur |
Shimano Deore XT M8100, 12-speed, SGS cage |
|
Chainguide |
Shimano EN800 upper slider |
|
Cranks |
Shimano Deore XT M8150, 160mm length |
|
Chainrings |
Shimano, 38 tooth |
|
Pedals |
Marin MTB, plastic platform |
|
Chain |
KMC E12S, 12-speed, eMTB specific |
|
Cassette |
SunRace, 12-speed, 10-51 tooth |
|
Rims |
Marin, double wall aluminum, sleeved joint, 32mm (front) and 38mm (rear) inner width, tubeless compatible |
|
Hubs |
Shimano TC500, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver |
|
Spokes |
Stainless steel, 14g |
|
Tires |
Front: VEE Tire Co. Attack HPL, Top 40 tubeless compatible, 29" x 2.5" Rear: VEE Tire Co. Crown Gem, Tackee compound, tubeless compatible, 27.5" x 2.8" |
|
Saddle |
Marin eMTB |
|
Seatpost |
X-Fusion Manic dropper, 1x composite remote lever Drop: 125mm (SM), 150mm (MD/LG), 170mm (XL) |
|
Seatpost Diameter |
30.9mm |
|
Seatpost Clamp |
Single bolt |
|
Rear Dropout / Hub Dimensions |
12mm x 148mm (Boost) |
|
Max. Tire Size |
|
|
Bottle Cage Mounts |
One inside front triangle |
|
Colors |
Gloss Grey/Black |
|
Warranty |
5 years frame |
|
Weight |
|
|
Miscellaneous |
• MultiTrac single pivot rear suspension design • Mixed ("Mullet") wheels: 29" front, 27.5" rear • Internal cable routing • Includes Shimano STEPS E6002 battery charger • Includes Cush Core tire inserts (Pro front, Plus rear) and valve stems, plus Marin tubeless sealant |
